SCAT Chevy 454 – 540 Forged Rotating Assembly – 1-42375BI
$2,869.00
SCAT’s sales staff will reach out to confirm your rotating assembly order and provide a delivery lead time, which is typically 2-3 weeks.

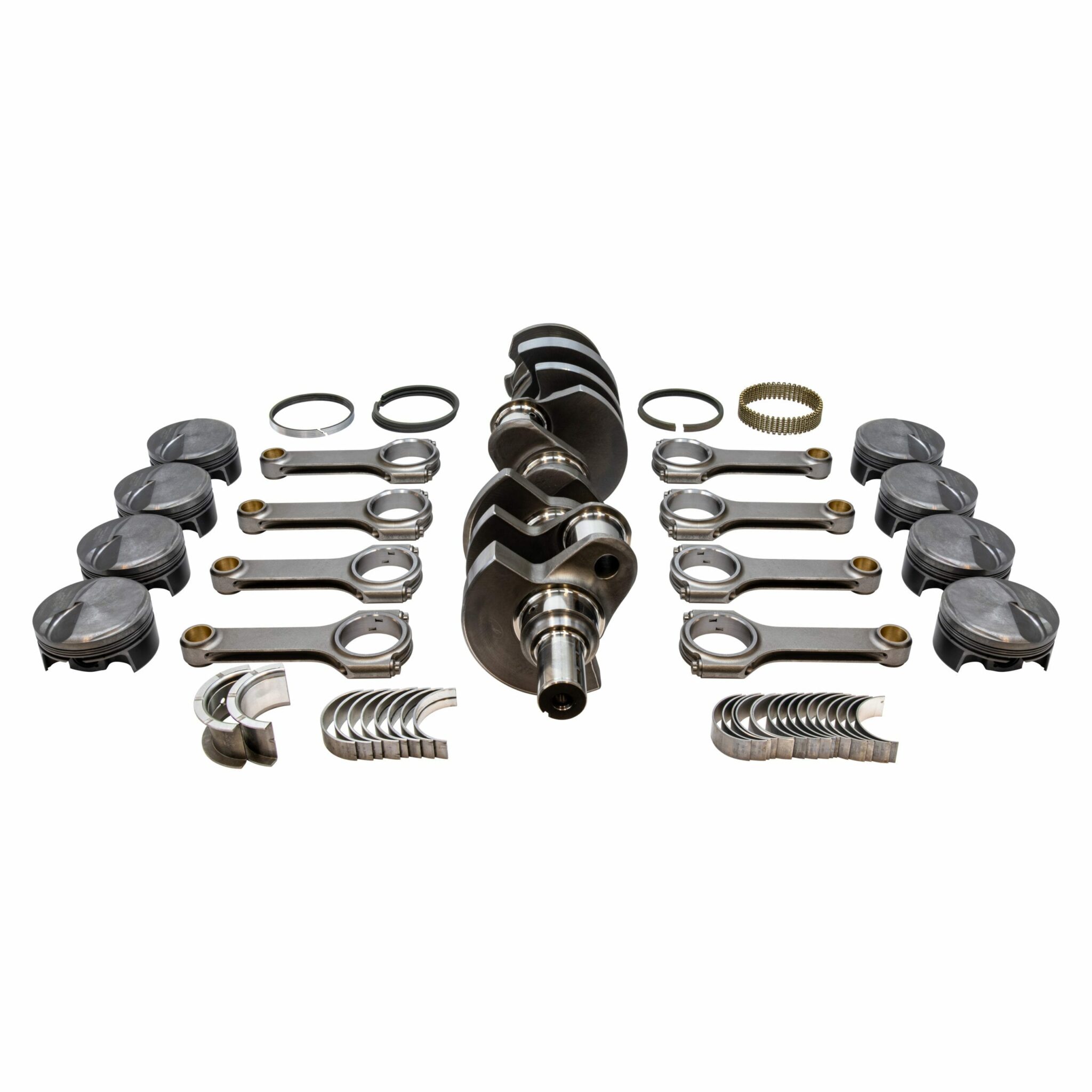

SCAT Chevy 454 - 540 Forged Rotating Assembly - 1-42375BI includes a 4340 Forged Standard Weight Crankshaft, Pro Sport Or Pro Series Connecting Rods With 7/16" Cap Screws, Forged Pistons, Rings, Rod & Main Bearings, Internal Balanced, 454 Main, 2-Pc Rear Seal, 9.800 Short Deck
WARNING | This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
---|---|
ADVERTENCIA | Este producto pueda que contenga qu?micos reconocidos por el estado de California que provocan cancer, defectos de nacimiento u otros da?os reproductivos. |
Additional information
Weight | 112 lbs |
---|---|
Dimensions | 19 × 14 × 26 in |
Make | Chevy |
Engine | 454 Main |
Balance | Internal |
CI | 540 |
Crank Part # | 4-454-4250-6385 |
Crank | Forged |
Crank Stroke | 4.250" |
Rod Part # | 2-454-6385-2200 |
Wrist Pin | Floating |
Rod Length | 6.385" |
Rod Style | H-Beam |
Piston Part # | 181553 |
Pistons MFG | SRP |
Pistons Class | Premium Forged |
Bore | 4.5 |
Type | Dish |
cc | -9.00cc |
Ring Part # | ST4500-5 |
Rings Included | Yes |
Oversize | 0.03 |
MB Part # | MS-829H |
Rod Bearing Part # | CB-743HN |
Damper Part # | – |
Flexplate Part # | – |
Compression | 112cc |
