SCAT Chevy 454 – 572 Forged Rotating Assembly – 1-42390
$2,711.00
SCAT’s sales staff will reach out to confirm your rotating assembly order and provide a delivery lead time, which is typically 2-3 weeks.

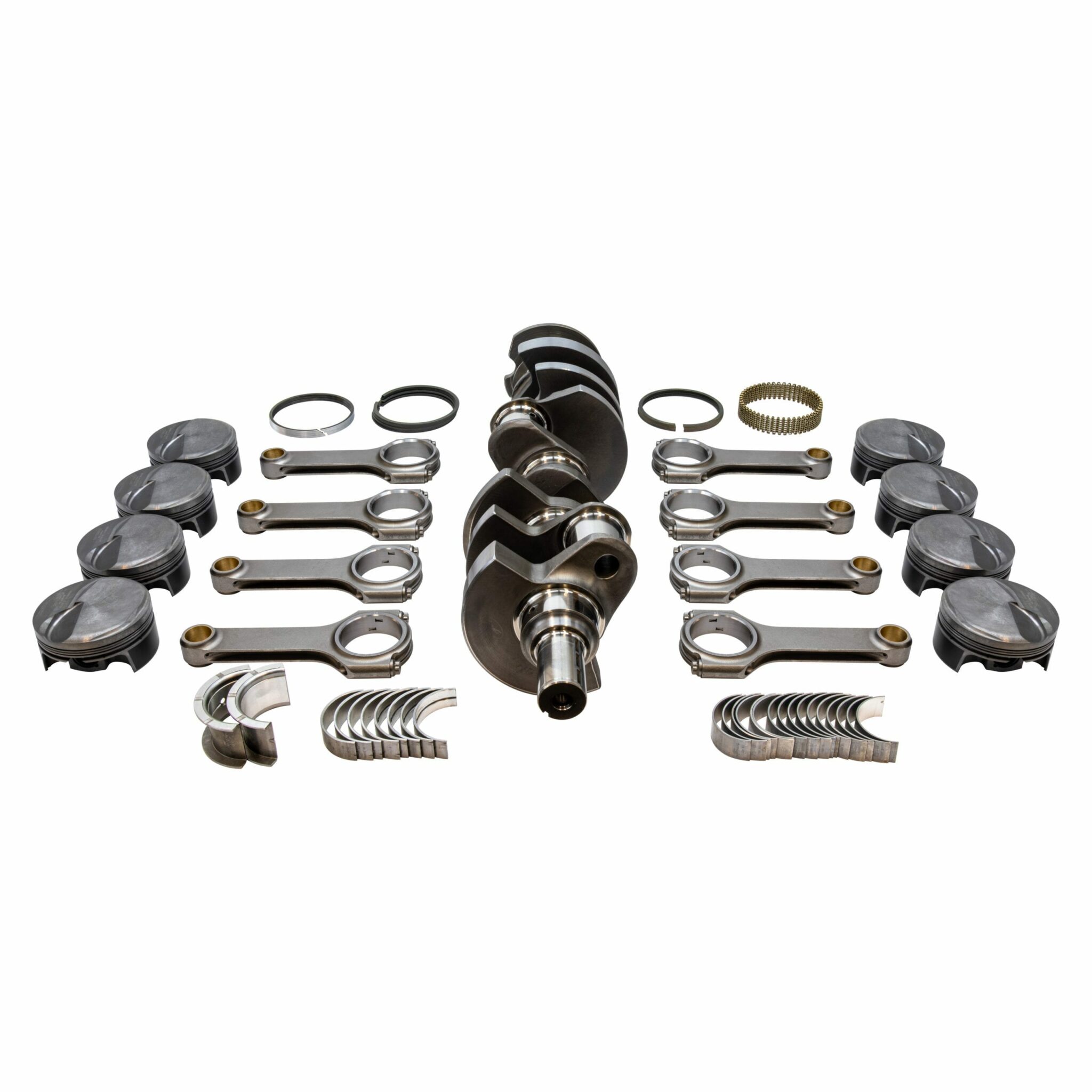

SCAT Chevy 454 - 572 Forged Rotating Assembly - 1-42390 includes a 4340 Forged Standard Weight Crankshaft, Pro Sport H-Beam Connecting Rods With 7/16" Cap Screws, Forged Pistons, Rings, Rod & Main Bearings, 454 Main, 2-Pc Rear Seal, 10.200 Tall Deck, 1.395 Compression Height
| WARNING | This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
|---|---|
| ADVERTENCIA | Este producto pueda que contenga qu?micos reconocidos por el estado de California que provocan cancer, defectos de nacimiento u otros da?os reproductivos. |
Additional information
| Weight | 108 lbs |
|---|---|
| Dimensions | 19 × 14 × 26 in |
| Make | Chevy |
| Engine | 454 Main |
| Balance | None |
| CI | 572 |
| Crank Part # | 4-454-4500-6535 |
| Crank | Forged |
| Crank Stroke | 4.500" |
| Rod Part # | 2-454-6535-2200 |
| Wrist Pin | Floating |
| Rod Length | 6.535" |
| Rod Style | H-Beam |
| Piston Part # | 1000284 |
| Pistons MFG | Autotec |
| Pistons Class | Premium Forged |
| Bore | 4.5 |
| Type | Dish |
| cc | -27.20cc |
| Ring Part # | CR2013-250 |
| Rings Included | Yes |
| Oversize | STD |
| MB Part # | MS-829H |
| Rod Bearing Part # | CB-743HN |
| Damper Part # | – |
| Flexplate Part # | – |
| Compression | 112cc |
