SCAT Chevy 454 – 632 Forged Rotating Assembly – 1-43285
$2,760.00
SCAT’s sales staff will reach out to confirm your rotating assembly order and provide a delivery lead time, which is typically 2-3 weeks.

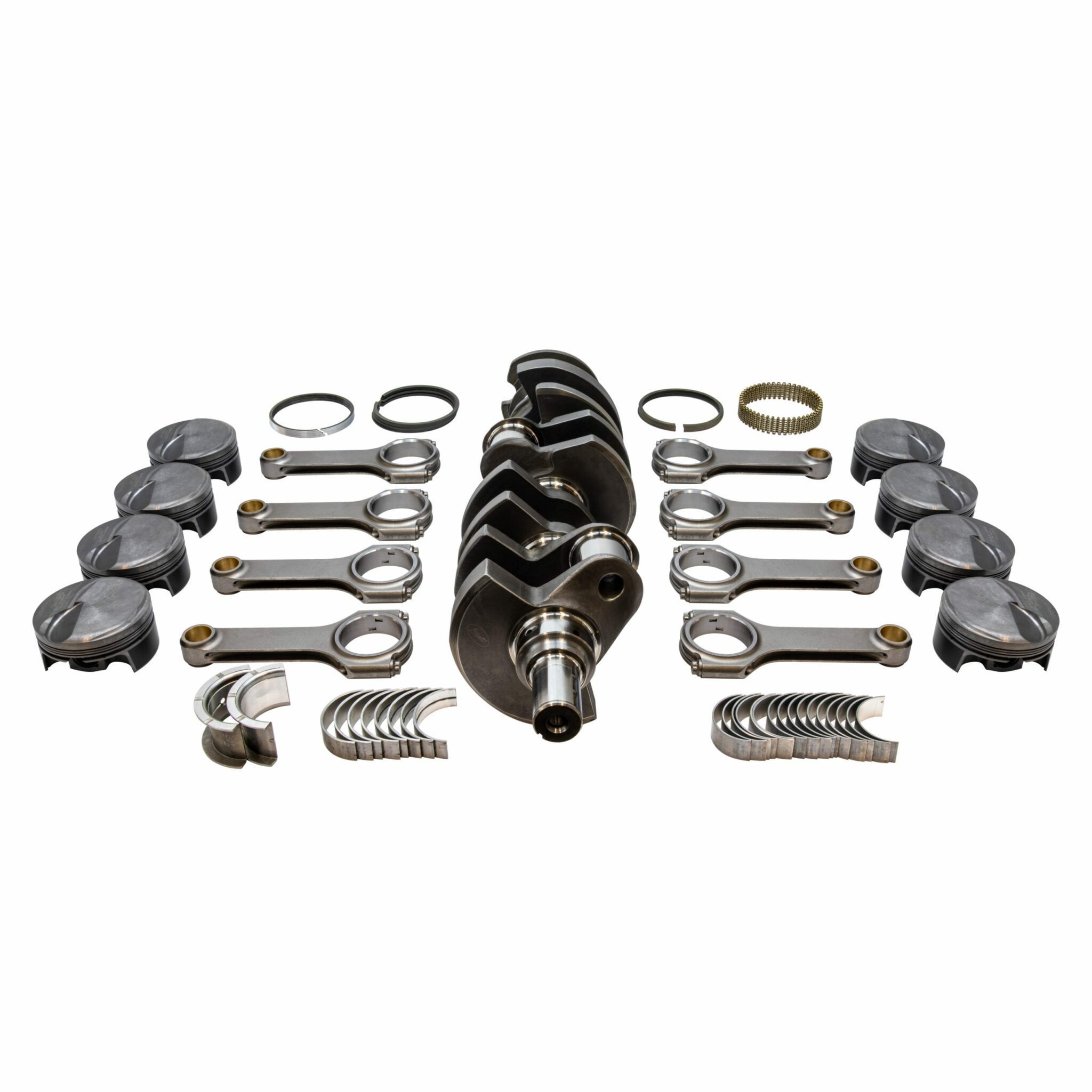

SCAT Chevy 454 - 632 Forged Rotating Assembly - 1-43285 includes a 4340 Forged Standard Weight Crankshaft, Pro Sport H-Beam Connecting Rods With 7/16" Cap Screws, Forged Pistons, Rings, Rod & Main Bearings, 454 Main, 2-Pc Rear Seal, 10.200 Tall Deck, Center Counterweights
| WARNING | This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
|---|---|
| ADVERTENCIA | Este producto pueda que contenga qu?micos reconocidos por el estado de California que provocan cancer, defectos de nacimiento u otros da?os reproductivos. |
Additional information
| Weight | 108 lbs |
|---|---|
| Dimensions | 19 × 14 × 26 in |
| Make | Chevy |
| Engine | 454 Main |
| Balance | None |
| CI | 632 |
| Crank Part # | 4-454-4750-6700-C |
| Crank | Forged |
| Crank Stroke | 4.750" |
| Rod Part # | 2-454-6700-2200 |
| Wrist Pin | Floating |
| Rod Length | 6.700" |
| Rod Style | H-Beam |
| Piston Part # | BBC5322-100-8 |
| Pistons MFG | CP |
| Pistons Class | Premium Forged |
| Bore | 4.6 |
| Type | Dome |
| cc | 19.00cc |
| Ring Part # | Incl with pistons |
| Rings Included | No |
| Oversize | 0.1 |
| MB Part # | MS-829H |
| Rod Bearing Part # | CB-743HN |
| Damper Part # | – |
| Flexplate Part # | – |
| Compression | 112cc |
