SCAT Chevy LS Series 403 Forged Rotating Assembly- 1-43612
$2,018.00
SCAT’s sales staff will reach out to confirm your rotating assembly order and provide a delivery lead time, which is typically 2-3 weeks.

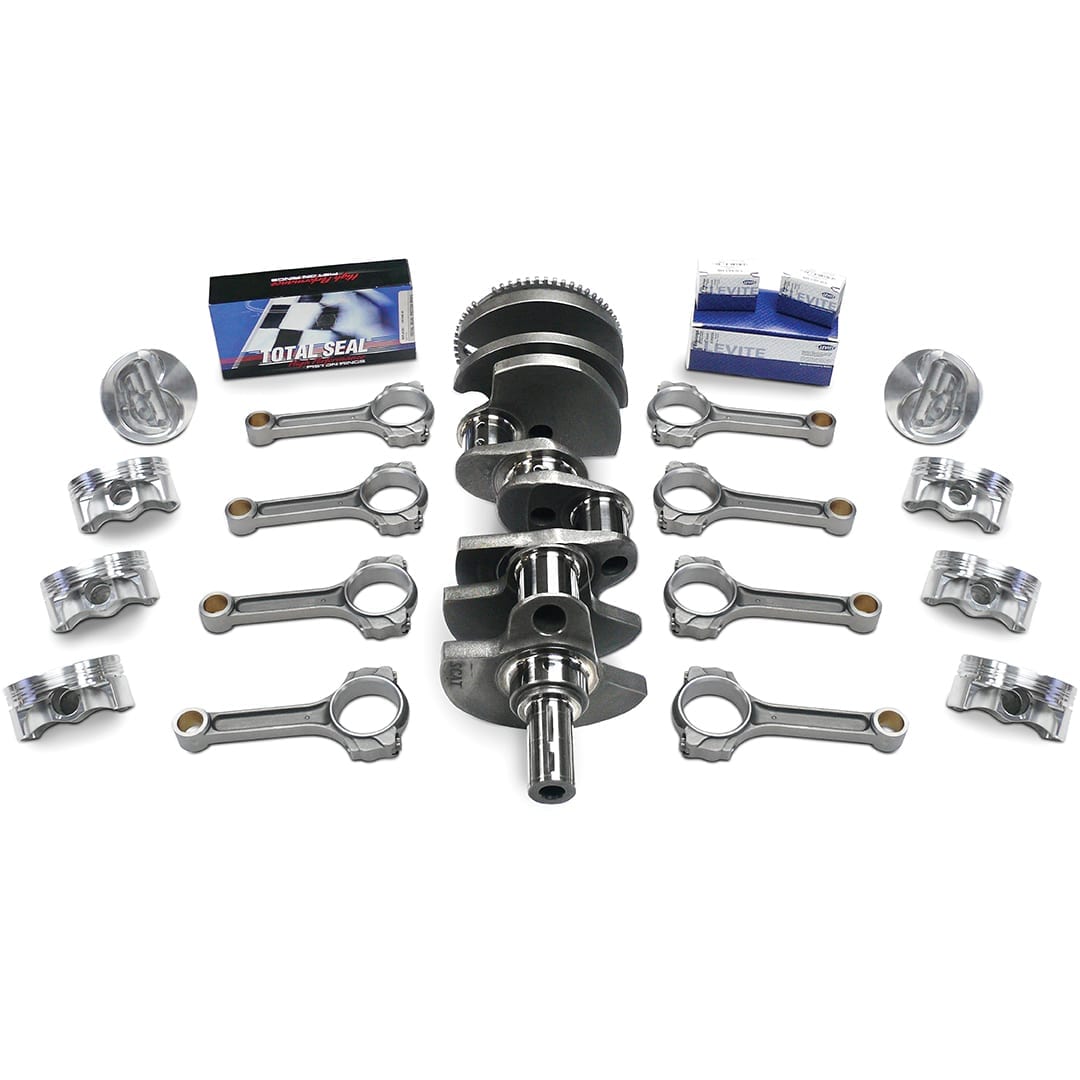

SCAT Chevy LS Series 403 Forged Rotating Assembly - 1-43612 includes a LS1 4340 Forged 24x Crankshaft, Pro Series I-Beam Connecting Rods With 7/16" Cap Screws, Forged Pistons, Rings, Rod & Main Bearings, Includes Reluctor Wheel (2005 & Prior)
| WARNING | This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
|---|---|
| ADVERTENCIA | Este producto pueda que contenga quĂmicos reconocidos por el estado de California que provocan cancer, defectos de nacimiento u otros daños reproductivos. |
Additional information
| Weight | 90 lbs |
|---|---|
| Dimensions | 19 × 14 × 26 in |
| Make | Chevy LS1 |
| Engine | LS Series |
| Balance | None |
| CI | 403 |
| Crank Part # | 4-Chevy LS1-4000-6125-24-S |
| Crank | Forged |
| Crank Stroke | 4.000" |
| Rod Part # | 2-ICR6125-7/16 |
| Wrist Pin | Bushed |
| Rod Length | 6.125" |
| Rod Style | I-Beam |
| Piston Part # | 9996CKTSFHR-030 |
| Pistons MFG | Icon |
| Pistons Class | Forged |
| Bore | 4.03 |
| Type | Dish |
| cc | -10cc |
| Ring Part # | Incl with pistons |
| Rings Included | Yes |
| Oversize | 0.03 |
| MB Part # | MB5013XP |
| Rod Bearing Part # | CR807XPN |
| Damper Part # | – |
| Flexplate Part # | – |
| Compression | 64.5cc |
