SCAT Ford 302 – 306 Forged Rotating Assembly – 1-45010
$2,197.00

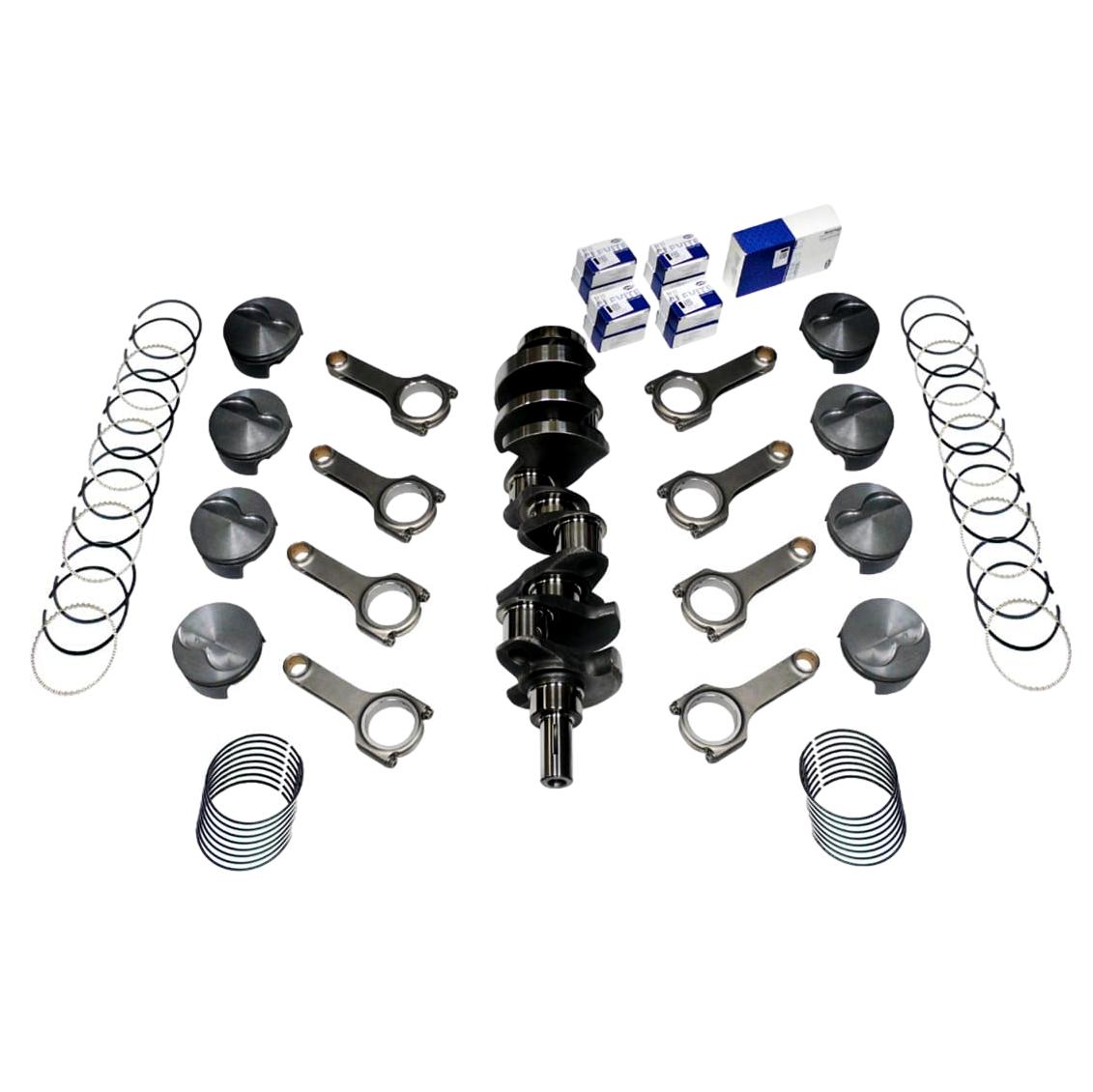

Ford 302 4340 Forged Standard Weight Competition Rotating Assembly includes 4340 Forged Standard Weight Crankshaft, Pro Series H-Beam Connecting Rods With 7/16" Cap Screws Forged Pistons, Rings, Rod & Main Bearings
| WARNING | This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
|---|---|
| ADVERTENCIA | Este producto pueda que contenga químicos reconocidos por el estado de California que provocan cancer, defectos de nacimiento u otros daños reproductivos. |
Additional information
| Weight | 84 lbs |
|---|---|
| Dimensions | 19 × 14 × 26 in |
| Make | Ford |
| Engine | 302 Main |
| Balance | None |
| CI | 306 |
| Crank Part # | 4-302-3000-5090-2123 |
| Crank | Forged |
| Crank Stroke | 3.000" |
| Rod Part # | 2-302-5090-2123-912 |
| Wrist Pin | Floating |
| Rod Length | 5.090" |
| Rod Style | H-Beam |
| Piston Part # | SBF600030F06 |
| Pistons MFG | Mahle |
| Pistons Class | Premium Forged |
| Bore | 4.03 |
| Type | Flat |
| cc | -6.00cc |
| Ring Part # | Incl with pistons |
| Rings Included | No |
| Oversize | 0.03 |
| MB Part # | MS-590H |
| Rod Bearing Part # | CB-634HN |
| Damper Part # | – |
| Flexplate Part # | – |
| Compression | 54cc |
