SCAT Chrysler 340 – 416 Forged Rotating Assembly – 1-48015BI
$2,439.00

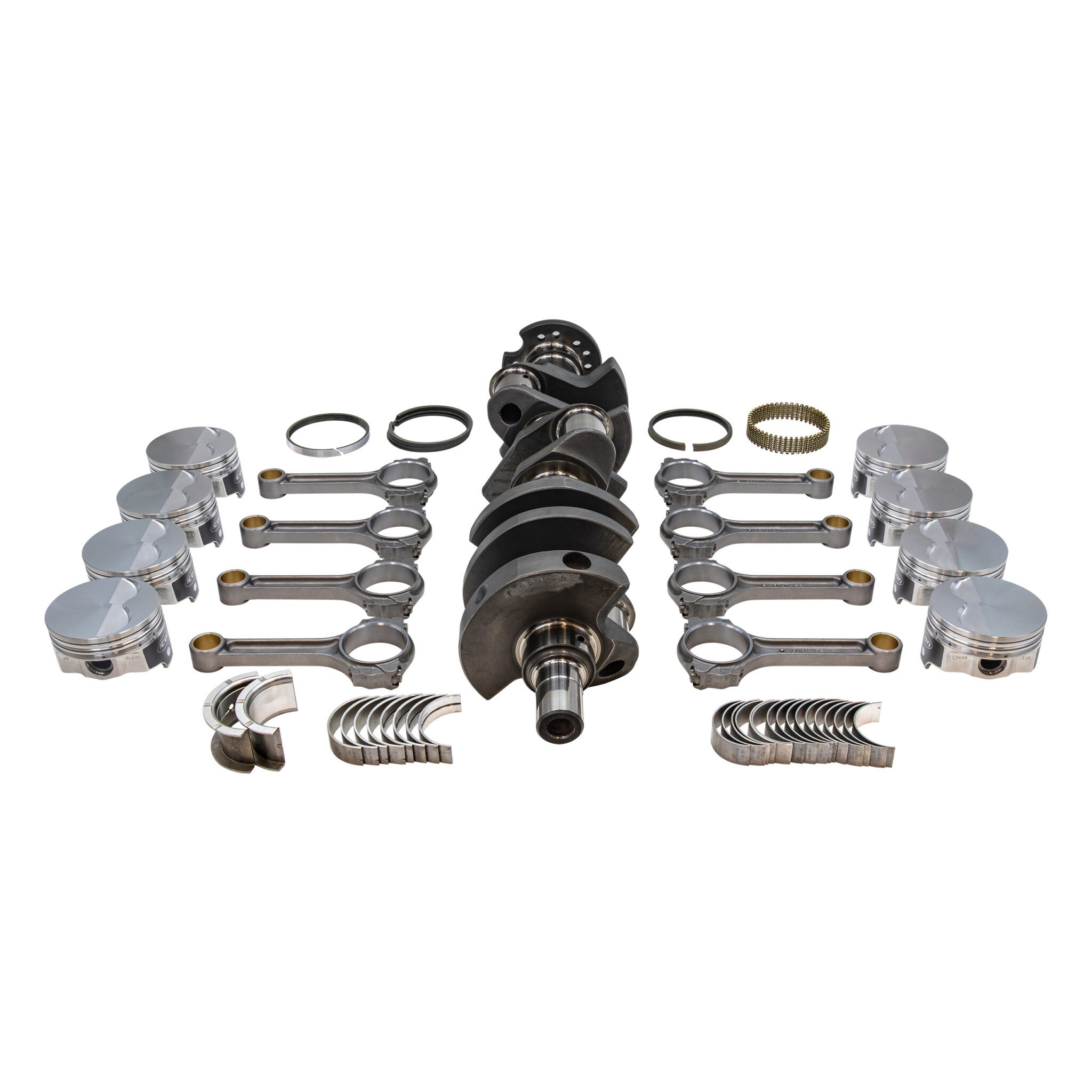

Chrysler 340 4340 Forged Competition Rotating Assembly includes 4340 Forged Standard Weight Crankshaft, Pro Series I-Beam Connecting Rods With 7/16" Cap Screws, Forged Pistons, Rings, Rod & Main Bearings, Internal Balanced
| WARNING | This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
|---|---|
| ADVERTENCIA | Este producto pueda que contenga químicos reconocidos por el estado de California que provocan cancer, defectos de nacimiento u otros daños reproductivos. |
Additional information
| Weight | 94 lbs |
|---|---|
| Dimensions | 19 × 14 × 26 in |
| Make | Chrysler |
| Engine | 340 Main |
| Balance | Internal |
| CI | 416 |
| Crank Part # | 4-340-4000-6123 |
| Crank | Forged |
| Crank Stroke | 4.000" |
| Rod Part # | 2-ICR6123-2124 |
| Wrist Pin | Bushed |
| Rod Length | 6.123" |
| Rod Style | I-Beam |
| Piston Part # | KB745+.070 |
| Pistons MFG | Icon |
| Pistons Class | Forged |
| Bore | 4.07 |
| Type | Dish |
| cc | -20.50cc |
| Ring Part # | ST4070-5 |
| Rings Included | Yes |
| Oversize | 0.03 |
| MB Part # | MS-540H |
| Rod Bearing Part # | CB-481HN |
| Damper Part # | – |
| Flexplate Part # | – |
| Compression | 76cc |
