SCAT Ford 302 – 347 Cast Rotating Assembly – 1-94195
$1,706.00
Out of stock
Want to be notified when this product is back in stock?

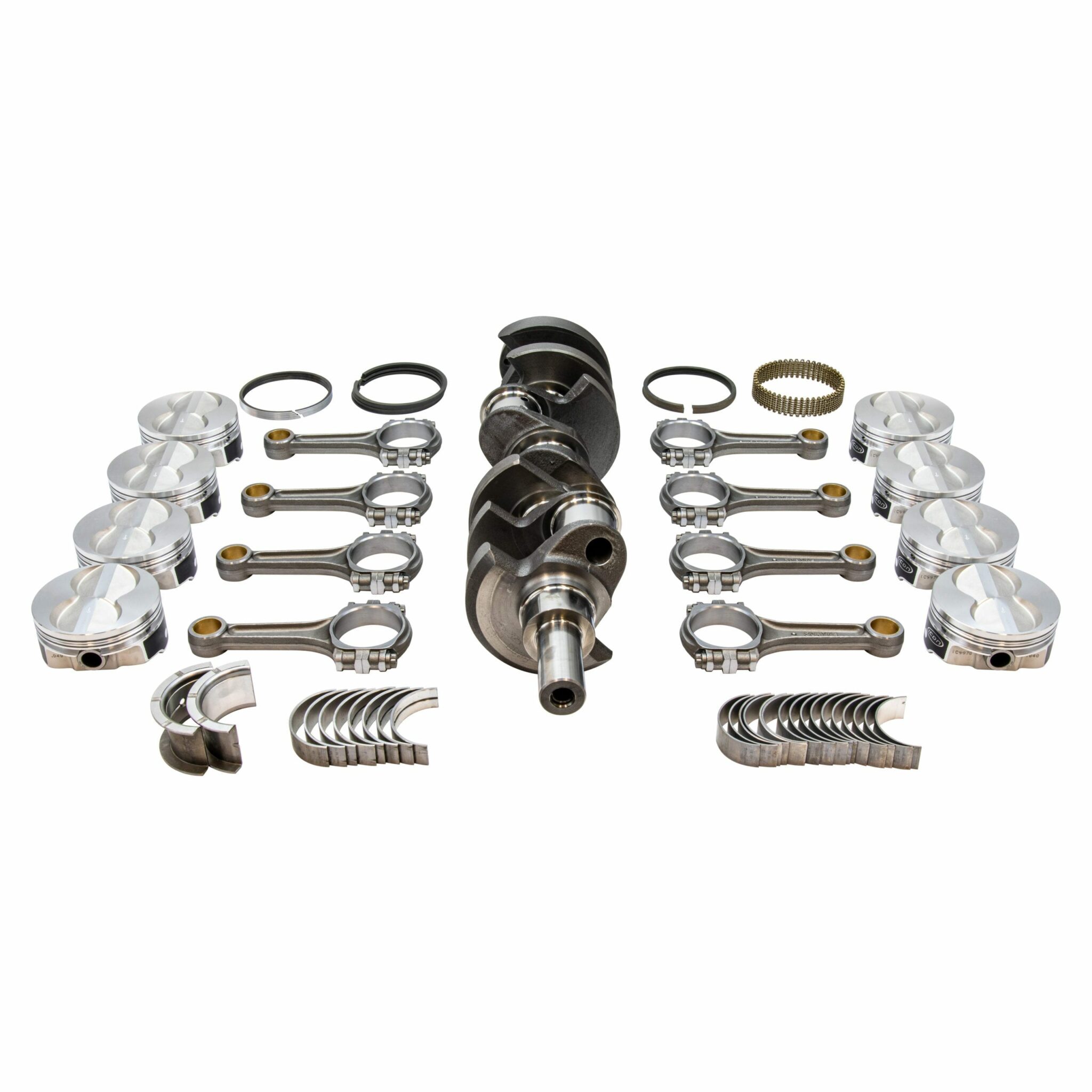

302 Main, Series 9000 Cast Crankshaft, Pro Stock I-Beam Connecting Rods With 3/8" Cap Screws, Forged Pistons, Rings, Rod & Main Bearings
| WARNING | This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
|---|---|
| ADVERTENCIA | Este producto pueda que contenga químicos reconocidos por el estado de California que provocan cancer, defectos de nacimiento u otros daños reproductivos. |
Additional information
| Weight | 80 lbs |
|---|---|
| Dimensions | 19 × 14 × 26 in |
| Make | Ford |
| Engine | 302 Main |
| Balance | None |
| CI | 347 |
| Crank Part # | 9-302-3400-5400-2123 |
| Crank | Cast |
| Crank Stroke | 3.400" |
| Rod Part # | 2-ICR5400-927 |
| Wrist Pin | Bushed |
| Rod Length | 5.400" |
| Rod Style | I-Beam |
| Piston Part # | KB739+.030 |
| Pistons MFG | Icon |
| Pistons Class | Forged |
| Bore | 4.03 |
| Type | Dome |
| cc | 6.80cc |
| Ring Part # | ST4030 |
| Rings Included | Yes |
| Oversize | 0.03 |
| MB Part # | MB529SI |
| Rod Bearing Part # | CR804SI |
| Damper Part # | – |
| Flexplate Part # | – |
| Compression | 54cc |
