SCAT Ford FE 428 Block 430 Cast Rotating Assembly – 1-94626
$2,179.00

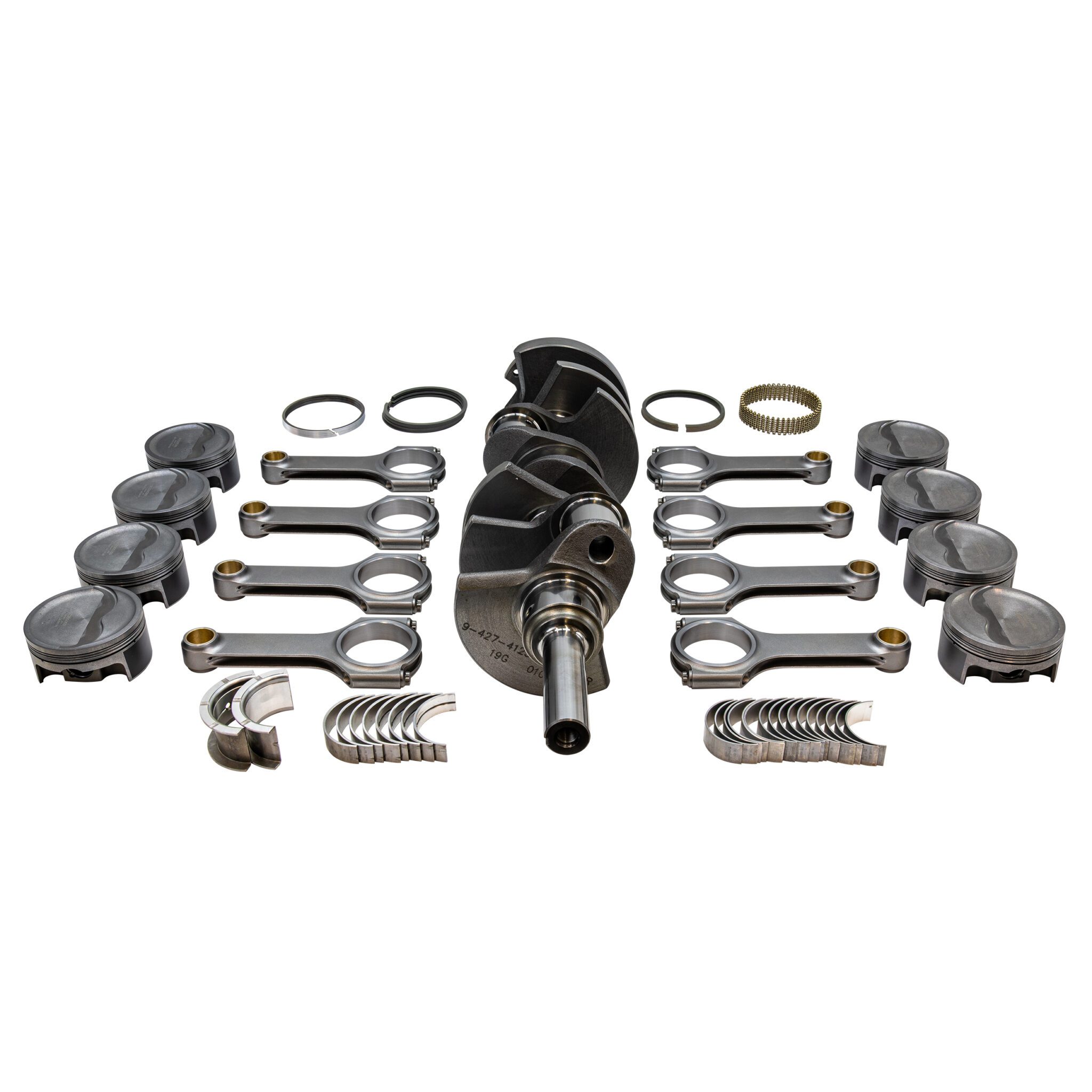

Series 9000 Cast Pro Comp Crankshaft, Pro Sport H-Beam Connecting Rods With 7/16" Cap Screws, Forged Pistons, Rings, Rod & Main Bearings
| WARNING | This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
|---|---|
| ADVERTENCIA | Este producto pueda que contenga quimicos reconocidos por el estado de California que provocan cancer, defectos de nacimiento u otros danos reproductivos. |
Additional information
| Weight | 104 lbs |
|---|---|
| Dimensions | 19 × 14 × 26 in |
| Make | Ford FE 428 Block |
| Engine | FE 428 Block |
| Balance | None |
| CI | 430 |
| Crank Part # | 9-428-3980-6490-2438 |
| Crank | Cast |
| Crank Stroke | 3.980" |
| Rod Part # | 2-428-6490-2438-975 |
| Wrist Pin | Floating |
| Rod Length | 6.490" |
| Rod Style | H-Beam |
| Piston Part # | KB867+.030 |
| Pistons MFG | Icon |
| Pistons Class | Forged |
| Bore | 4.16 |
| Type | Dish |
| cc | -16.30cc |
| Ring Part # | ST4165 |
| Rings Included | Yes |
| Oversize | 0.03 |
| MB Part # | MB559AM |
| Rod Bearing Part # | CR809AM |
| Damper Part # | – |
| Flexplate Part # | – |
| Compression | 72cc |
