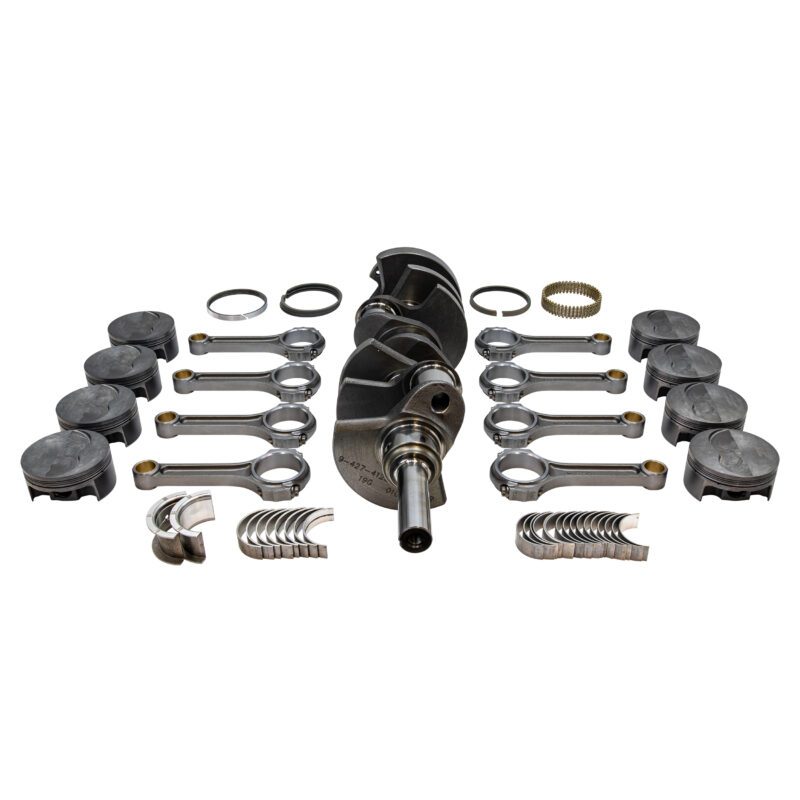

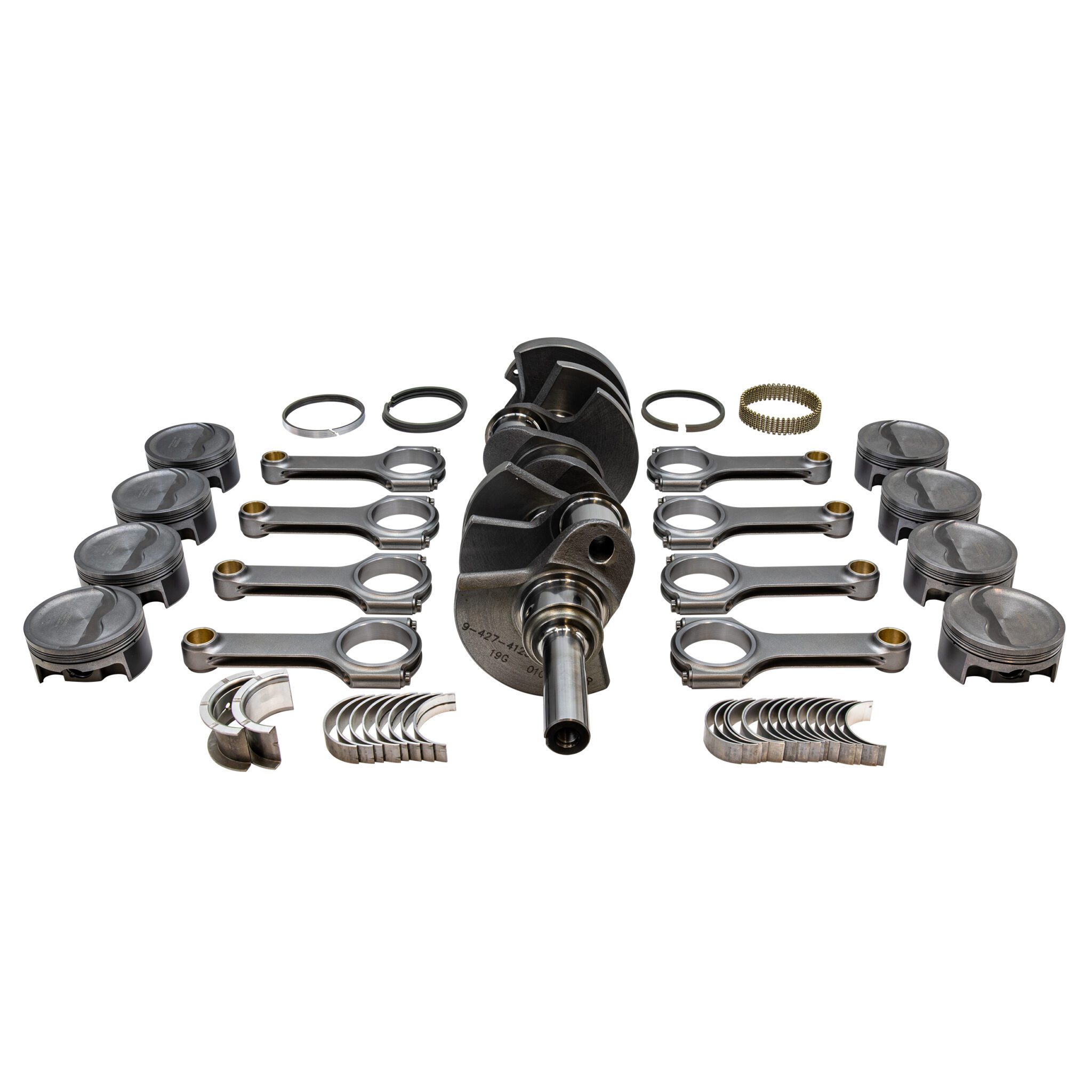

Ford FE 390 Series 9000 Block Rotating Assembly
Series 9000 Cast Pro Comp Crankshaft, Pro Sport H-Beam Connecting Rods With 7/16" Cap Screws, Forged Pistons, Rings, Rod & Main Bearings, Internal Balanced
WARNING | This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
---|---|
ADVERTENCIA | Este producto pueda que contenga químicos reconocidos por el estado de California que provocan cancer, defectos de nacimiento u otros daños reproductivos. |
Additional information
Weight | 100 lbs |
---|---|
Dimensions | 19 × 14 × 26 in |
Make | Ford FE 390 Block |
Engine | FE 390 Block |
Balance | Internal |
CI | 431 |
Crank Part # | 9-FE-4125-6700-2200 |
Crank | Cast |
Crank Stroke | 4.125" |
Rod Part # | 2-454-6700-2200 |
Wrist Pin | Floating |
Rod Length | 6.700" |
Rod Style | H-Beam |
Piston Part # | FFE390080I26 |
Pistons MFG | Mahle |
Pistons Class | Premium Forged |
Bore | 4.08 |
Type | Dish |
cc | -26.00cc |
Ring Part # | Incl with pistons |
Rings Included | No |
Oversize | 0.03 |
MB Part # | MB559AM |
Rod Bearing Part # | CR808SI |
Damper Part # | – |
Flexplate Part # | – |
Compression | 72cc |
