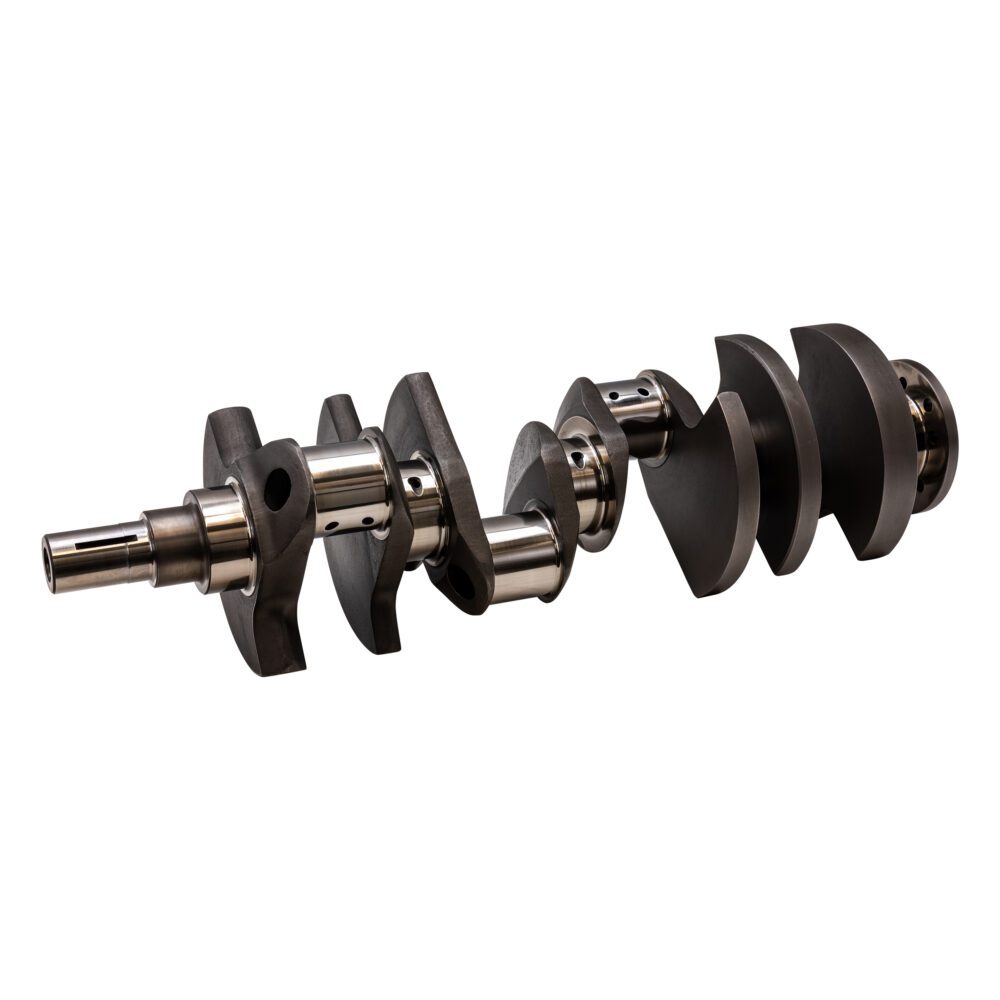

SCAT’s 4340 Standard Weight Crankshafts provide strength and reliability. With SCAT’s premium non-twist forgings, machined to exact specifications, big and reliable cubic inches can be made. Precision ground, heat treated and nitride hardened for superior wear resistance.
WARNING | This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
---|---|
ADVERTENCIA | Este producto pueda que contenga químicos reconocidos por el estado de California que provocan cáncer, defectos de nacimiento u otros daños reproductivos. |
Additional information
Weight | 65 lbs |
---|---|
Dimensions | 10 × 10 × 26 in |
Style | Forged |
Series | Standard Weight |
Make | Chrysler |
Engine | 383 |
Type | "B" Block Wedge |
Material | Forged 4340 Steel |
Rear Main Seal | 2-Piece |
Balance | Internal |
Lightened | No |
Narrow Bearing | Yes |
Rod Bearing Included | No |
Main Bearing Included | No |
Snout | Standard |
Stroke | 3.750, 4.150 |
Rod Length | 6.760" |
Rod Journal | 2.374 |
