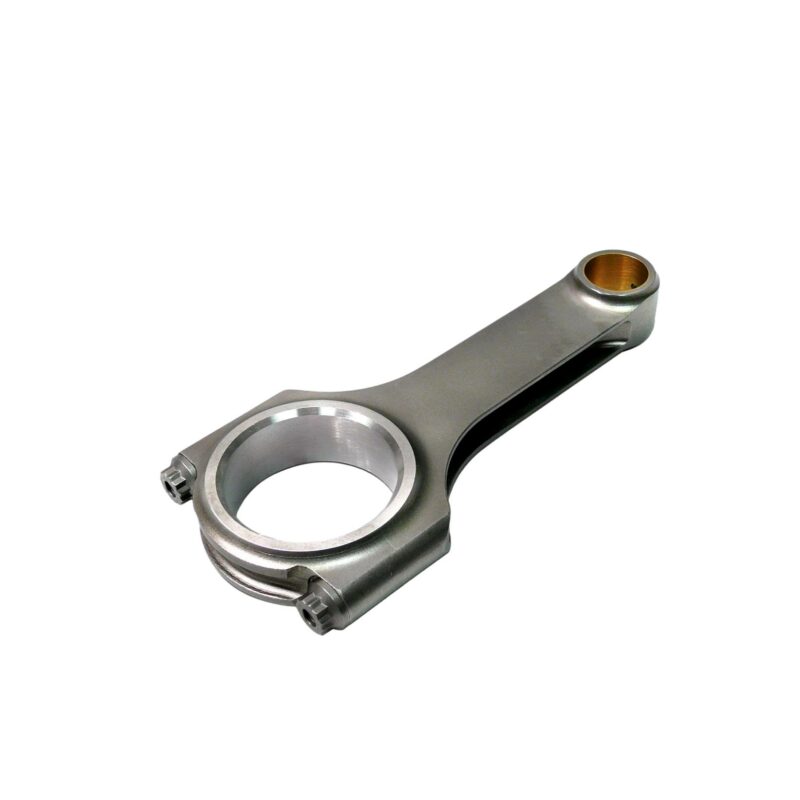

Chevy Q-Lite Pro Sport 4340 Forged H-Beam Connecting Rods

SKU: Chevy-Q-lite-Pro-Sport-4340-H-Beam Categories: , , , , Tags: , ,

$678.00

SKU: Chevy-Q-lite-Pro-Sport-4340-H-Beam Categories: , , , , Tags: , ,

Chevy Q-Lite Pro Sport 4340 Forged H-Beam Connecting Rods by SCAT Crankshafts are perfect for sport compact applications. The double rib cap design adds strength and bearing support. The polished and shot peened beams eliminate stress risers.



WARNING This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
ADVERTENCIA Este producto pueda que contenga químicos reconocidos por el estado de California que provocan cáncer, defectos de nacimiento u otros daños reproductivos.

Additional information

Weight 11 lbs
Dimensions 4 × 10 × 12 in
Make

Chevy

Application

Pro Sport

Style

H-Beam

Material

Forged 4340 Steel

Finish

Polish/Shot-peen

Wrist Pin

Floating

Stroke Clearance

Yes

Bolt Brand

ARP

Bolt Size

3/8"

Bolt Cap

Cap Screw

Bolt Head

12-Point

Bolt Material

ARP 2000

Cylinders

8

Rod Length

5.700, 6.000

Rod Journal

2.100

Wrist Pin Size

0.927

Big End Width

0.940
