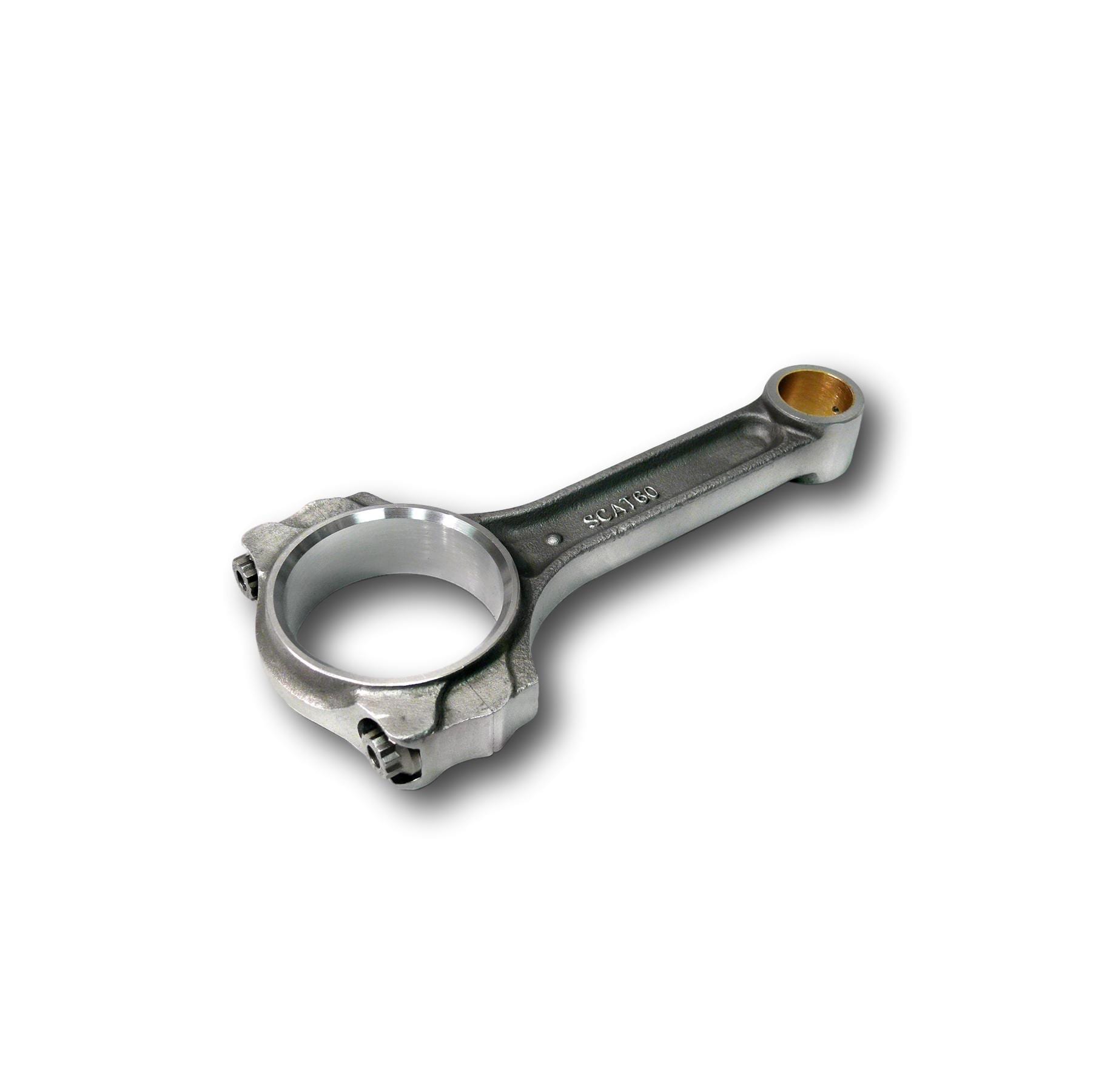

Chevy Small Block Pro Series 4340 Forged I-Beam Connecting Rods with ARP 7/16″ Cap Screw Bolts
$601.00 – $678.00
Chevy Small Block Pro Series 4340 Forged I-Beam Connecting Rods with ARP 7/16" Cap Screw Bolts are the strongest I-Beam connecting rods available. They're cut for cam clearance on longer stroke. The single rib cap design ensures added strength and bearing support, and the polished and shot-peened beams eliminate stress risers. The special hollow doweled cap offers accurate cap-to-rod beam alignment.
| WARNING | This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
|---|---|
| ADVERTENCIA | Este producto pueda que contenga químicos reconocidos por el estado de California que provocan cáncer, defectos de nacimiento u otros daños reproductivos. |
Additional information
| Weight | 12 lbs |
|---|---|
| Dimensions | 4 × 10 × 12 in |
| Make | Chevy |
| Application | Pro Series |
| Style | I-Beam |
| Material | Forged 4340 Steel |
| Finish | Polish/Shot-peen |
| Wrist Pin | Bushed |
| Stroker Clearance | Yes |
| Bolt Brand | ARP |
| Bolt Size | 7/16" |
| Cylinders | 8 |
| Rod Length | 5.700, 6.000, 6.125, 6.200 |
| Rod Journal | 2.100, 2.000 |
| Wrist Pin Size | 0.927, 0.866 |
| Big End Width | 0.94 |
