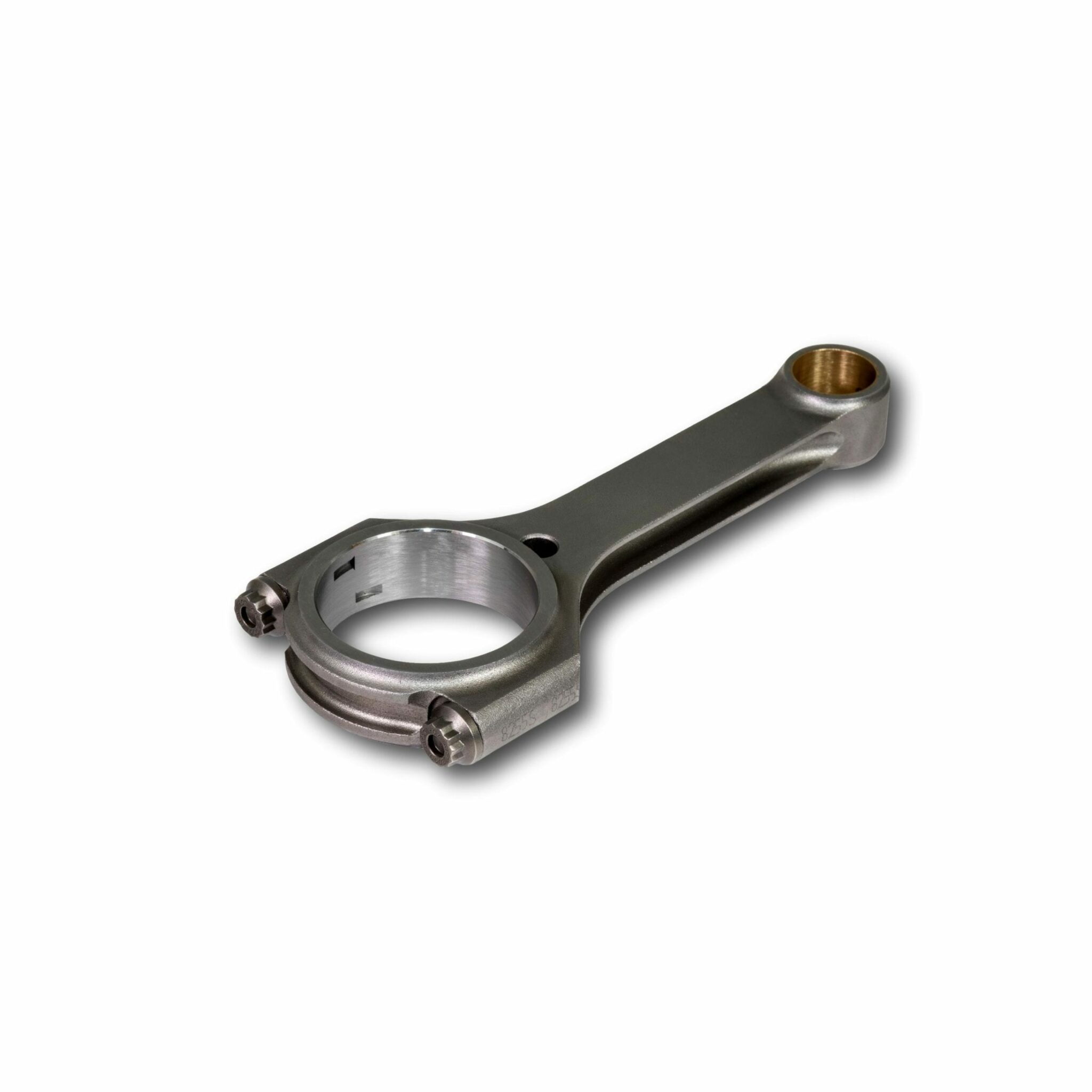

Chevy Ultra HP Pro Sport 4340 Forged H-Beam Connecting Rods

SKU: Chevy-Ultra-HP-Pro-Sport-4340-H-Beam Categories: , , , , Tags: , , , ,

$845.00

SKU: Chevy-Ultra-HP-Pro-Sport-4340-H-Beam Categories: , , , , Tags: , , , ,

Chevy Ultra HP Pro Sport 4340 Forged H-Beam Connecting Rods from SCAT Crankshafts are perfect for sport compact applications. The double rib cap design of the Chevy Ultra HP Pro Sport 4340 Stroker H-Beam Connecting Rods adds strength and bearing support. The extra material on beam makes these Stroker H-Beam Con Rods perfect for higher horsepower, supercharged and nitrous applications. They also have a special hollow doweled cap for accurate cap-to-rod beam alignment.

FEATURES & BENEFITS

  • Formula 1-inspired lightening hole
  • Cut for cam clearance on longer stroke
  • Double rib cap design for added strength and bearing support
  • Polished and shot peened beams to eliminate stress risers
  • Comes with 7/16” ARP L19 cap screw bolts
  • Available with 7/16” ARP 8740 or ARP 2000 cap screw bolts



WARNING This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
ADVERTENCIA Este producto pueda que contenga químicos reconocidos por el estado de California que provocan cáncer, defectos de nacimiento u otros daños reproductivos.

Additional information

Weight 11 lbs
Dimensions 4 × 10 × 12 in
Make

Chevy

Application

Pro Sport

Style

H-Beam

Material

Forged 4340 Steel

Finish

Polish/Shot-peen

Wrist Pin

Floating

Stroke Clearance

Yes

Bolt Brand

ARP

Bolt Size

7/16"

Bolt Cap

Cap Screw

Bolt Head

12-Point

Bolt Material

ARP L19

Cylinders

8

Rod Length

5.700, 5.850, 6.125, 6.000

Rod Journal

2.100, 2.000

Wrist Pin Size

0.927

Big End Width

0.940
